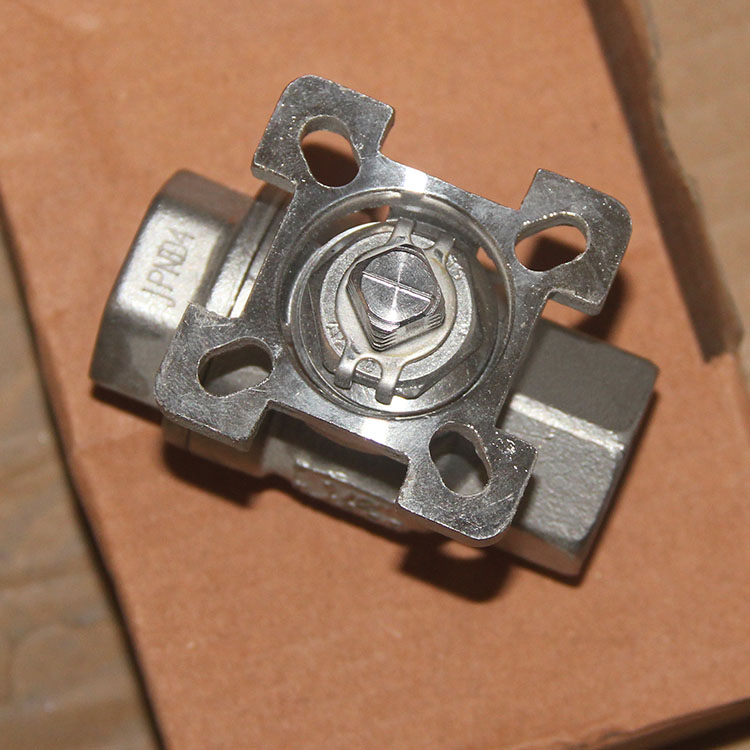

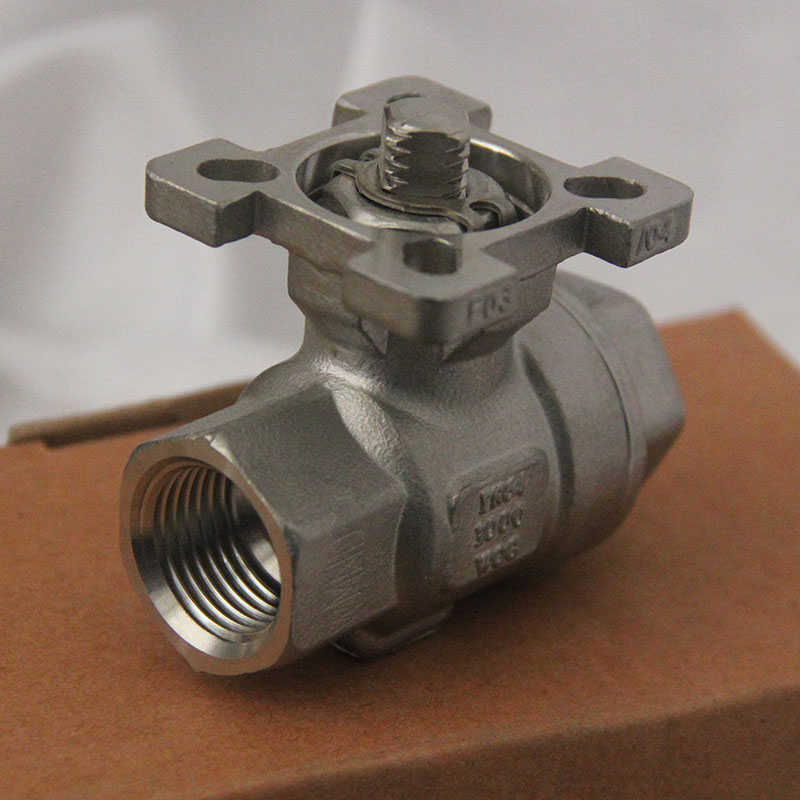

2PCTHREAD BALLVAVLE WITH ISO5211 PAD(1000WOG)

Applicature water、steam、oil、viscous media Anti-static,blow-out proof stem Torque balance，Daikin/3M seal

Investment casting,casting passed Germany TUv certification Material:CF8/CF8M/CF3/CF3M/WCB(customizable)

STANDARD SPECIFICATION

Pressure/Temperature: ASME B16.34 Design:ASME B16.34

Structure length: factory standard Test:API 598

Connection:BSP/BSPT/NPT/G/Rp/Rc

3PC FLANGED BALL VALVE WITHISO5211 PAD

Applicable water、steam,oil、viacous medea Fire prevention and anti-static,blow-out proof stem

Torque balance ,Three piese valve design, easy to install and repair Investment casting;casting passed Germany TUV certification Material:CF8/CF8M/CF3/CF3M/WCB(customizable)

STANDARD SPECIFICATION

Pressure/Temperature: ASME B 16.34 Design:EN12516-1

Structure length:DIN3202 Test:EN-12266-1

Connection:DIN2633

3PC THREAD BALL VALVE WITH ISO5211 PAD(1000WOG)

Applicable water,steam、oil、viscous media Anti-static,blow-out proof stem

Torque balance ,three piece body, easy to install and repair investment casting,casting passed TUV certification Material:CF8/CF8M/CF3/CF3M/WCB(customizable)

STANDARD SPECIFICATION

Pressure/Temperature: ASME B16.34 Design:ASME B16.34

Structure length:factory standard Test:API598

Connection:BSP/BSPT/NPT/G/RP/RC

3PC BUTT WELDING BALL VALVE WITH ISO5211 PAD(1000WOG)

Applicable water、steam、oil、viscous media Anti-static,blow-out proof stem

Torque balance,three piese valve design,easy to install and repair Investment casting.casting passed Germany TUv certification Material:CF8/CF8M/CF3/CF3M/WCB(customizable)

STANDARD SPECIFICATION

Pressure/Temperature:ASME B16.34 Design:ASMEB16.34

Structure length:factory standard Test:API598

Connection type:ASME B16.25

3PC SOCKETWELDING BALLVALVE WITHISO5211 PAD(1000WOG)

Applicable water、steam、oil、viscous media Anti-static,blow-out proof stem

Torque balance,three piece body design,easy to intall and repair Investment casting. casting passed Germany TUV certification Material:CF8/CF8M/CF3/CF3M/WCB(customizable)

STANDARD SPECIFICATION

Pressure/Temperature;ASME B16.34 Design: ASME B16.34

Structure length:factory standard Test:API598

Connection:GB/T 14383/ASME B16.11

3PCCLAMP BALL VAVLE WITH ISO5211 PAD

Applicable water、steam、oil、viscous media Anti-static,blow-out proof stem

Torque balance, three piece body design, easy to intall and repair Investment casting,casting passed Germany TUV certification in Material:CF8/CF8M/CF3/CF3M/WCB(customizable)

STANDARD SPECIFICATION

Pressure/Temperature: ASME B16.34 Design:ASME B16.34

Structure length:factory standard Test:API598

Connection:ASME BPE/ISO/IDF/DIN/3A/SMS
